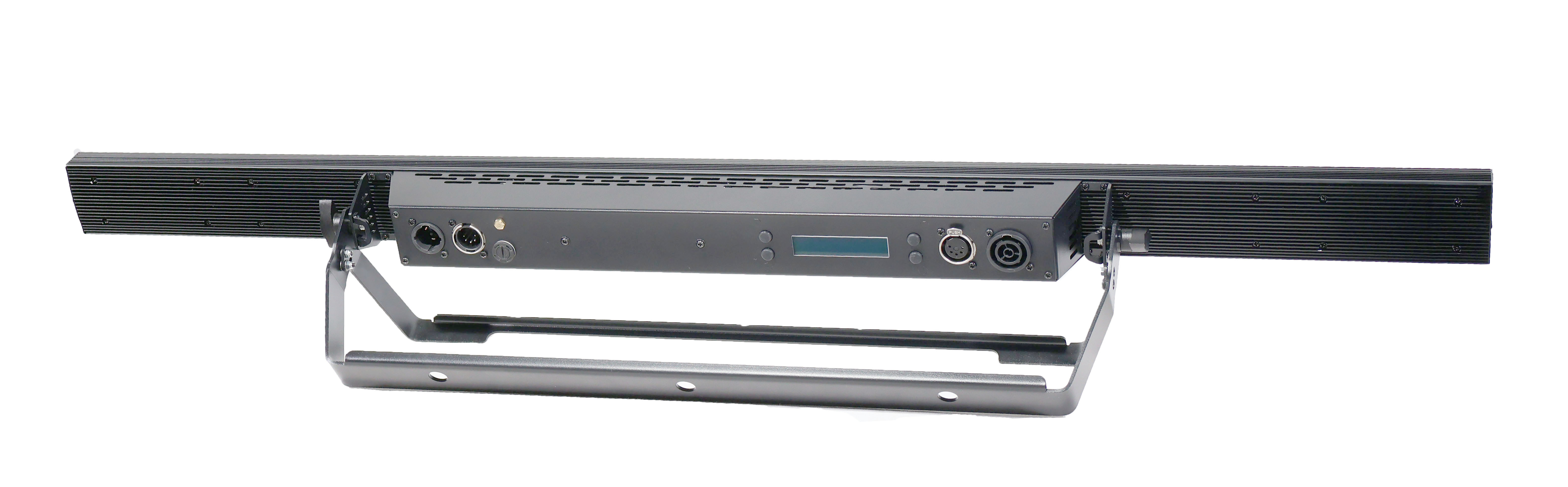

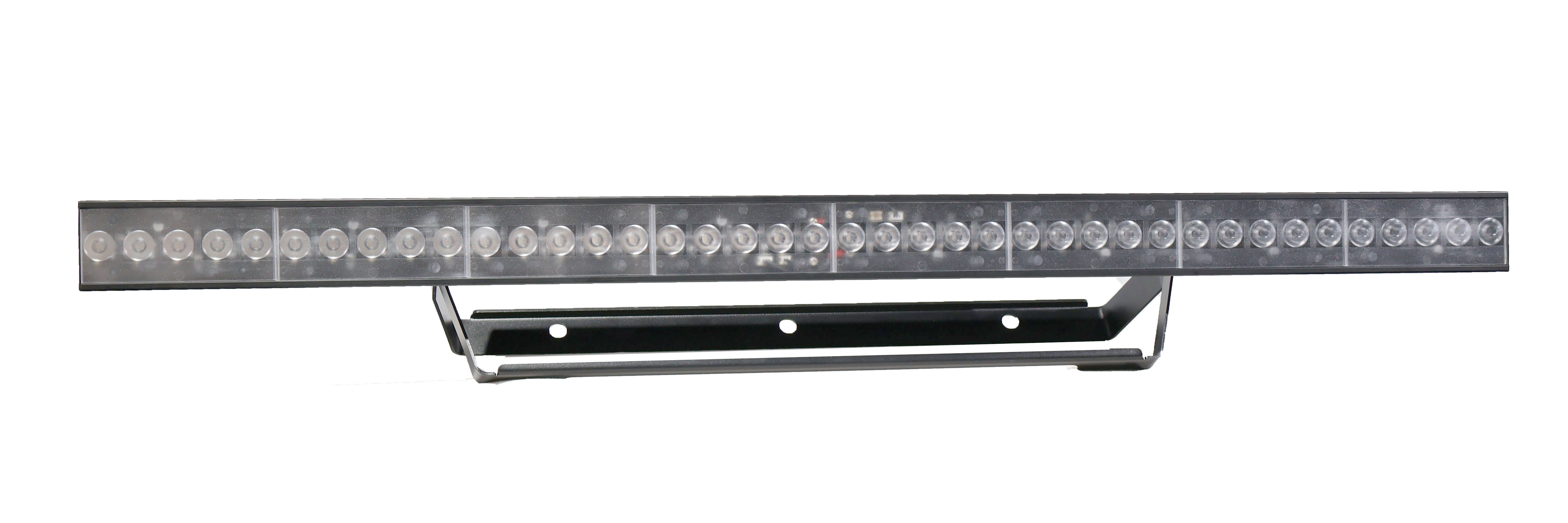

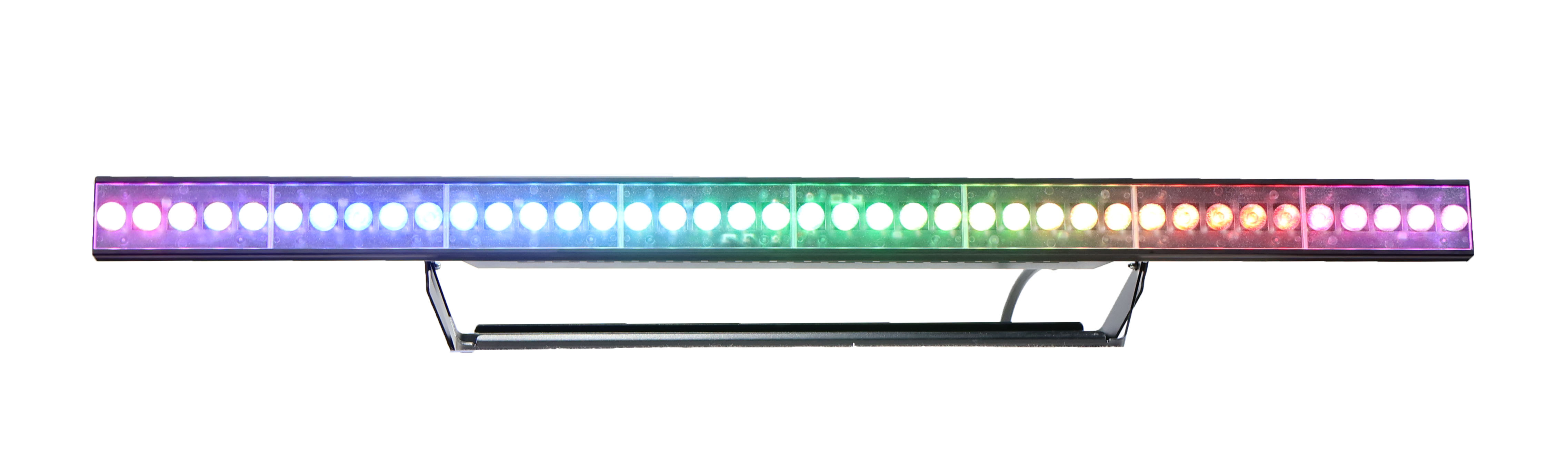

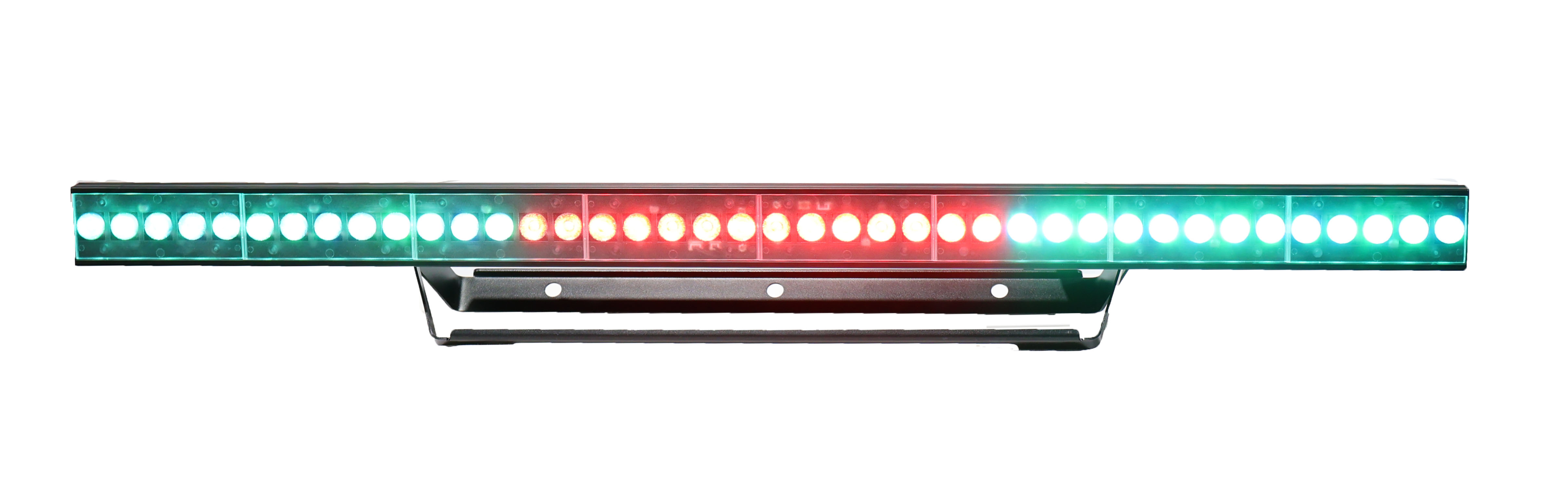

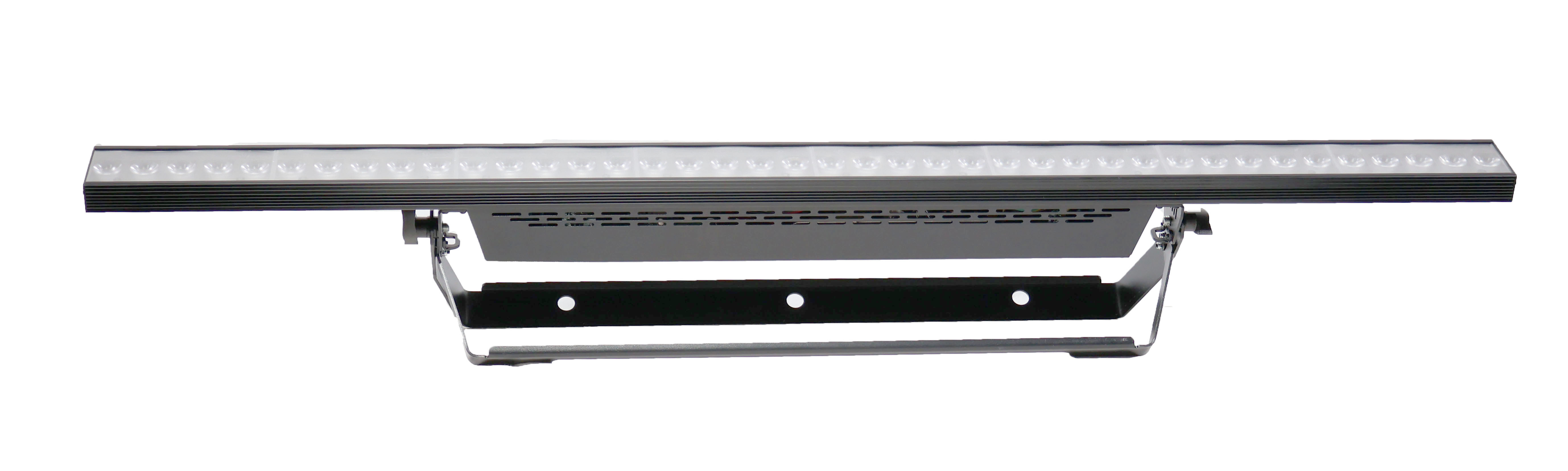

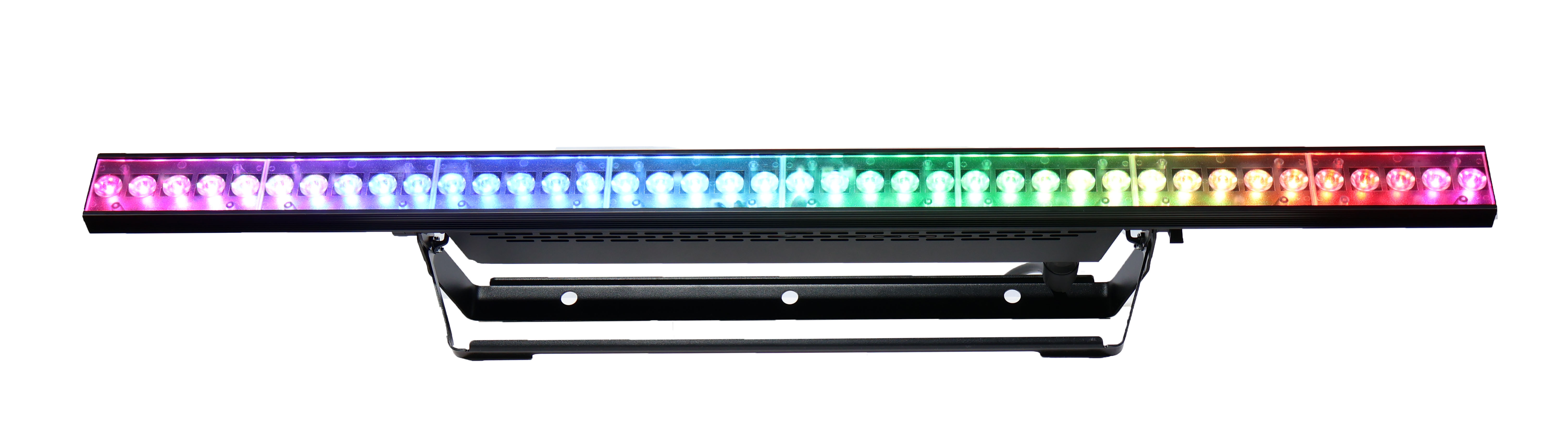

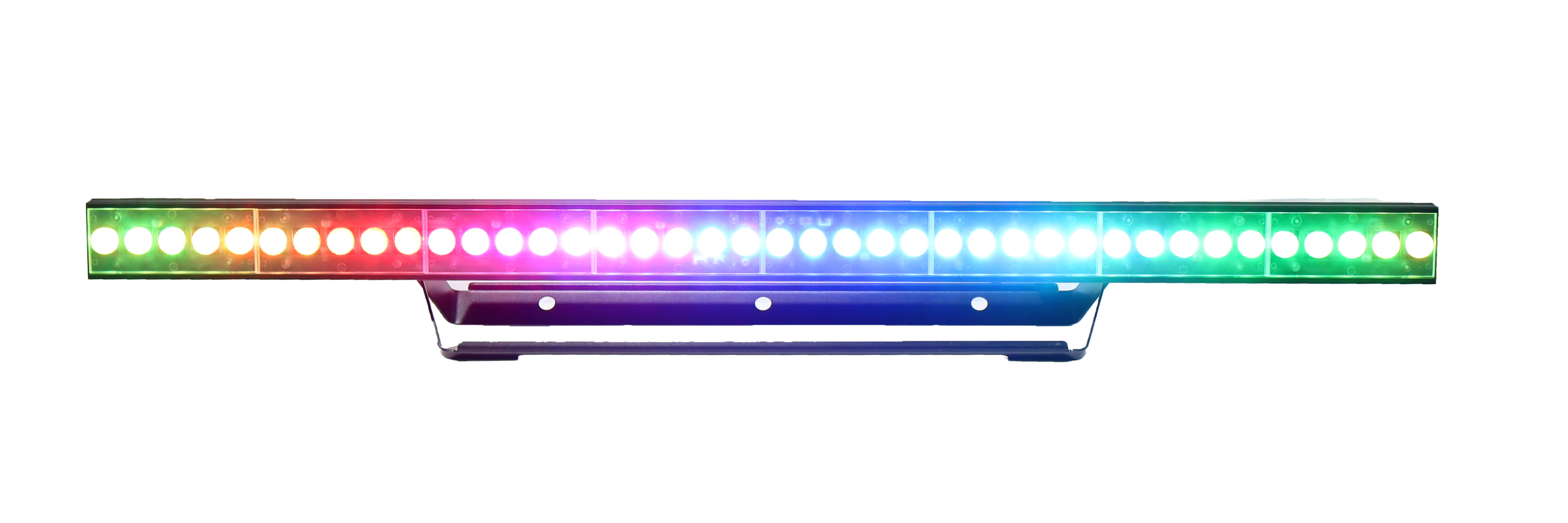

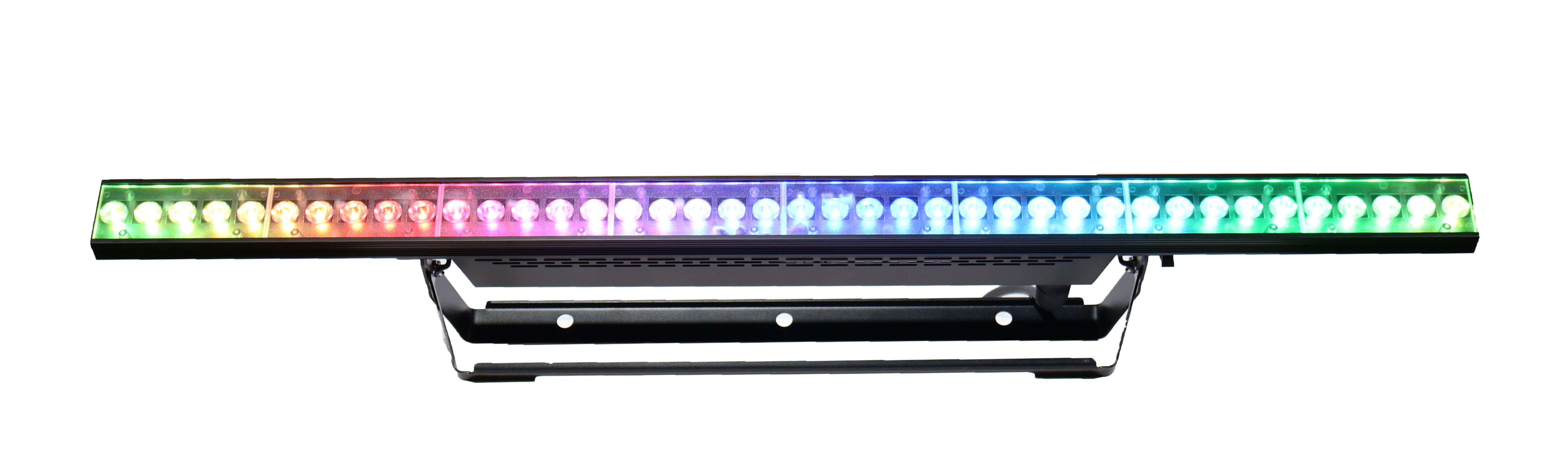

TECHNICAL SPECIFICATIONS:

• Light source: 40 pcs of RGB 3535 3 in 1 1.5W Led

• Power consumption: 65 W

• Illuminance: 5318lx @ 1m, 2450lx@2m

• Size: 992x 78 x 152 mm

• Weight:2.8kg

• Lens: Size:20mm, angel:14°, ,five lens integrated into one unit,equipped with frost filter

• Housing: Aluminium , black or white

• Cooling way: no fan,convection cooling,Temprature protection

• Dimming: 16bit digital dimming

• DMX Channel Modes:1/3/7/9/120/122CH

• Pixel : 40X3RGB pixel mapping

• PWM:24000 HZ

• Strobe Rate: 1-25HZ

• Operation modes: DMX-512 Protocol, Auto Run, Sound Active, Master/Slave,Static color,mult fixtures chasing automatically,WDMX （optional), RDM(optional)

• DMX512 connection: 5-pin XLR (3-pin for option)

• Power plugs: Rean True1

• Accessory: Flightcase

***Modifying the fixture according to your requirement is acceptable***
