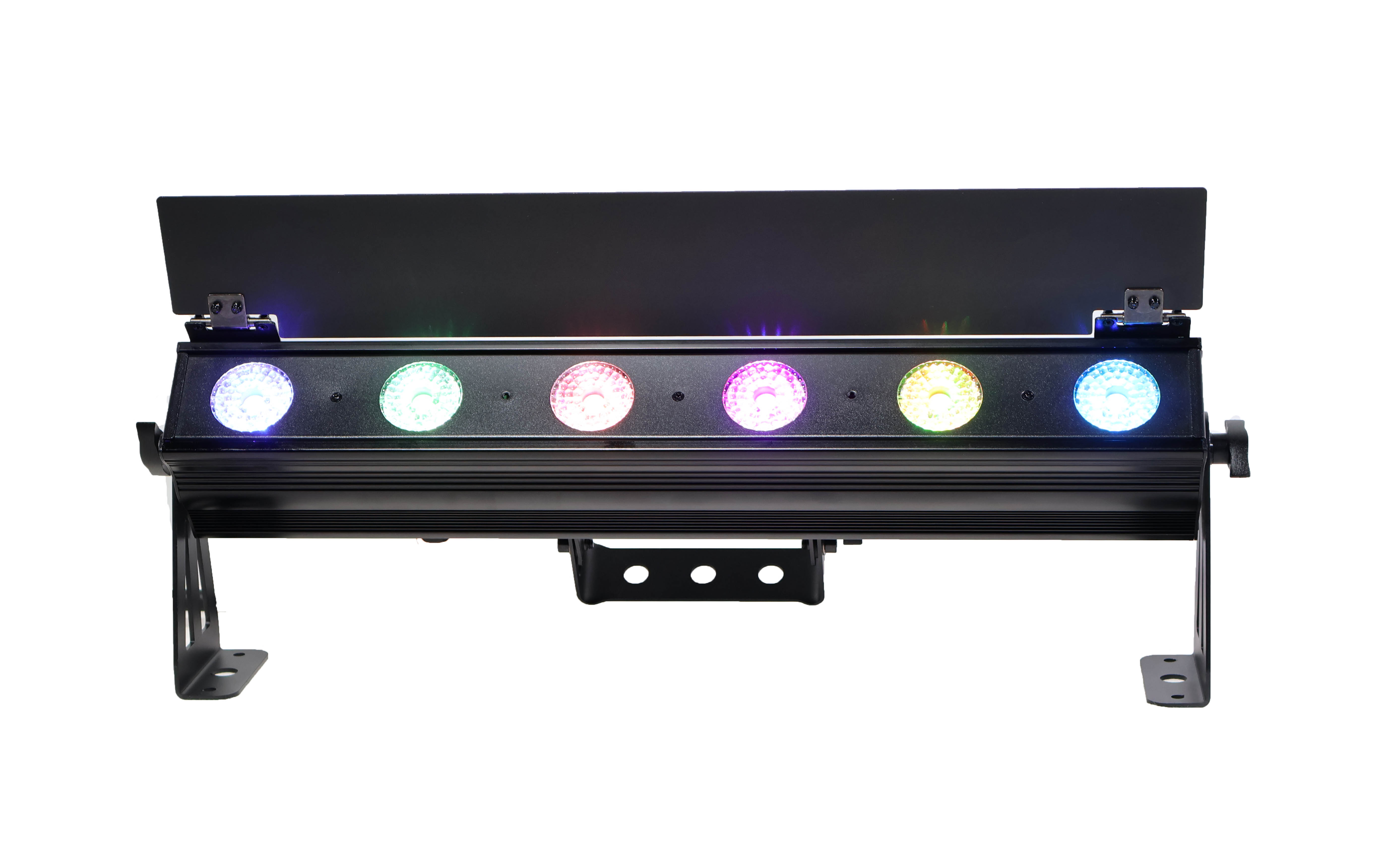

PIXBAR HEX 6
    Publish time 2016-07-04 15:31
PIXBAR HEX 6


TECHNICAL SPECIFICATIONS:


  • Light source: 6 X 12W RGBWA UV 6in1 Led

  • Power consumption: 60 W

  • Size: 568x 80 x 165 mm

  • Weight:2.6kg

  • Lens: 42mm 30 degree (55 for option)

  • Housing: Aluminium , black or white

  • Cooling way: no fan,convection cooling,Temprature protection

  • Dimming: 16bit digital dimming

  • DMX Channel Modes:3/4/6/8/12/36/38CH

  • Pixel : Dot (each color of led chip) controlled, segments controlled

  • Operation modes: DMX-512 Protocol, Auto Run, Sound Active, Master/Slave,Static color,mult fixtures chasing automatically. WDMX （optional), RDM(optional)

  • DMX512 connection: 3-pin XLR (5-pin for option)

  • Power plugs: IEC or Neurtrik powercon, Seetronic True1, Neutrik True1

  • Accessory: Flightcase, barndoor, frost filter


***Modifying the fixture according to your requirement is acceptable***
