TECHNICAL SPECIFICATIONS:

• Light source:4 pcs of COB RGB 30W Led

• Power : 120W

• Beam Angle:40°

• Field Angle:60°

• Illuminance(lx):Full on :R-893,G-1028,B-998,RGB-2548@ 1m

• Housing: Aluminum - Black or White

• Dimension: 425 x 187 x 163 mm

• Weight: 4 kg

• Cooling : No Fan,Temprature protection

•  DMX channels:  3 /  /5 / 9 / 12 /17CH

• Pixel: 4 X 3 RGB pixel mapping


• 16bit digital dimming

• Operation modes: DMX-512 Protocol, Auto Running programs, Sound Active, Master/Slave,RDM(Optional), WDMX(Optional)

• PWM:11700 HZ

• Strobe Effect: 1-25HZ

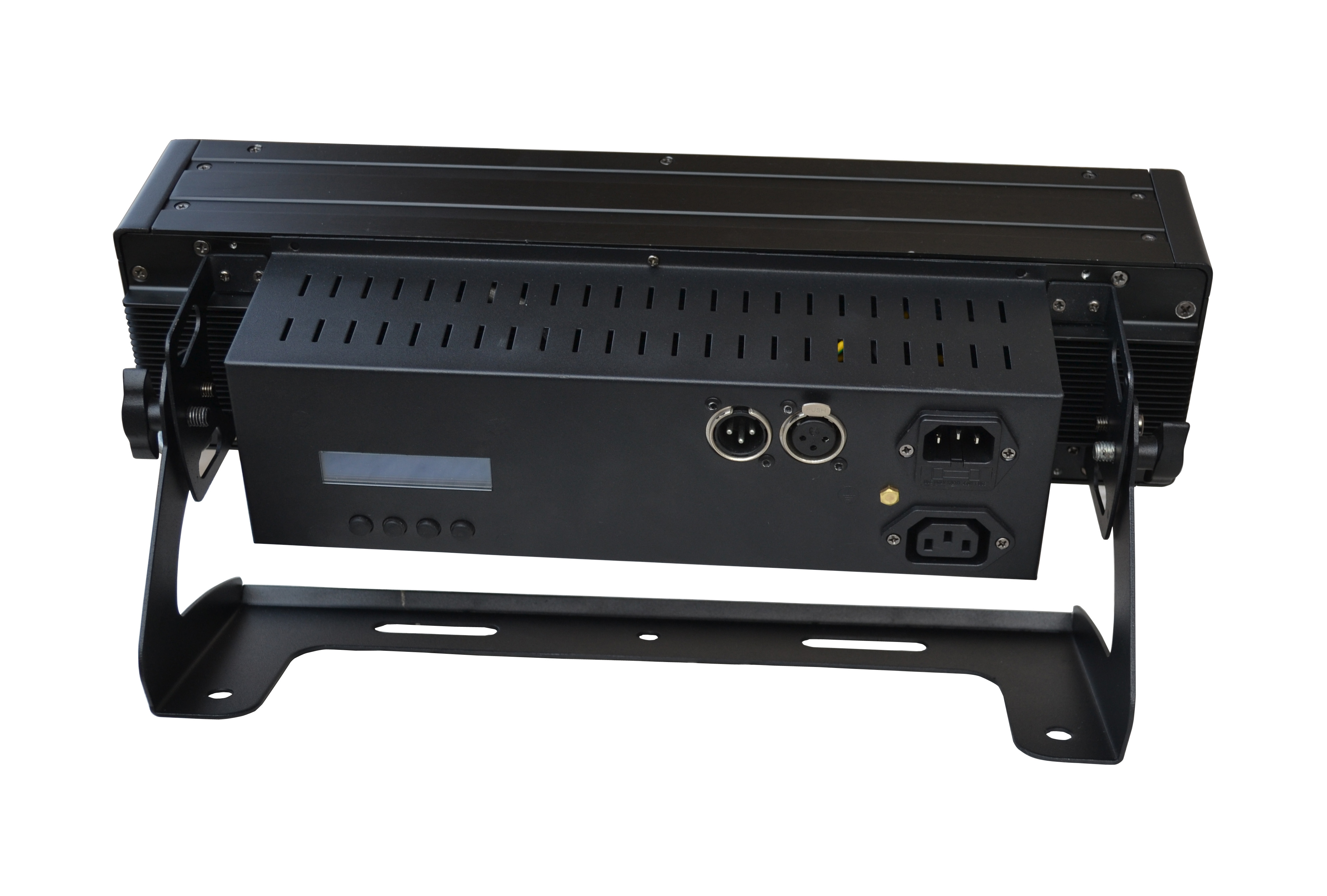

• Power connectors: IEC

• DMX512 connection: 3-pin XLR or 5-pin XLR

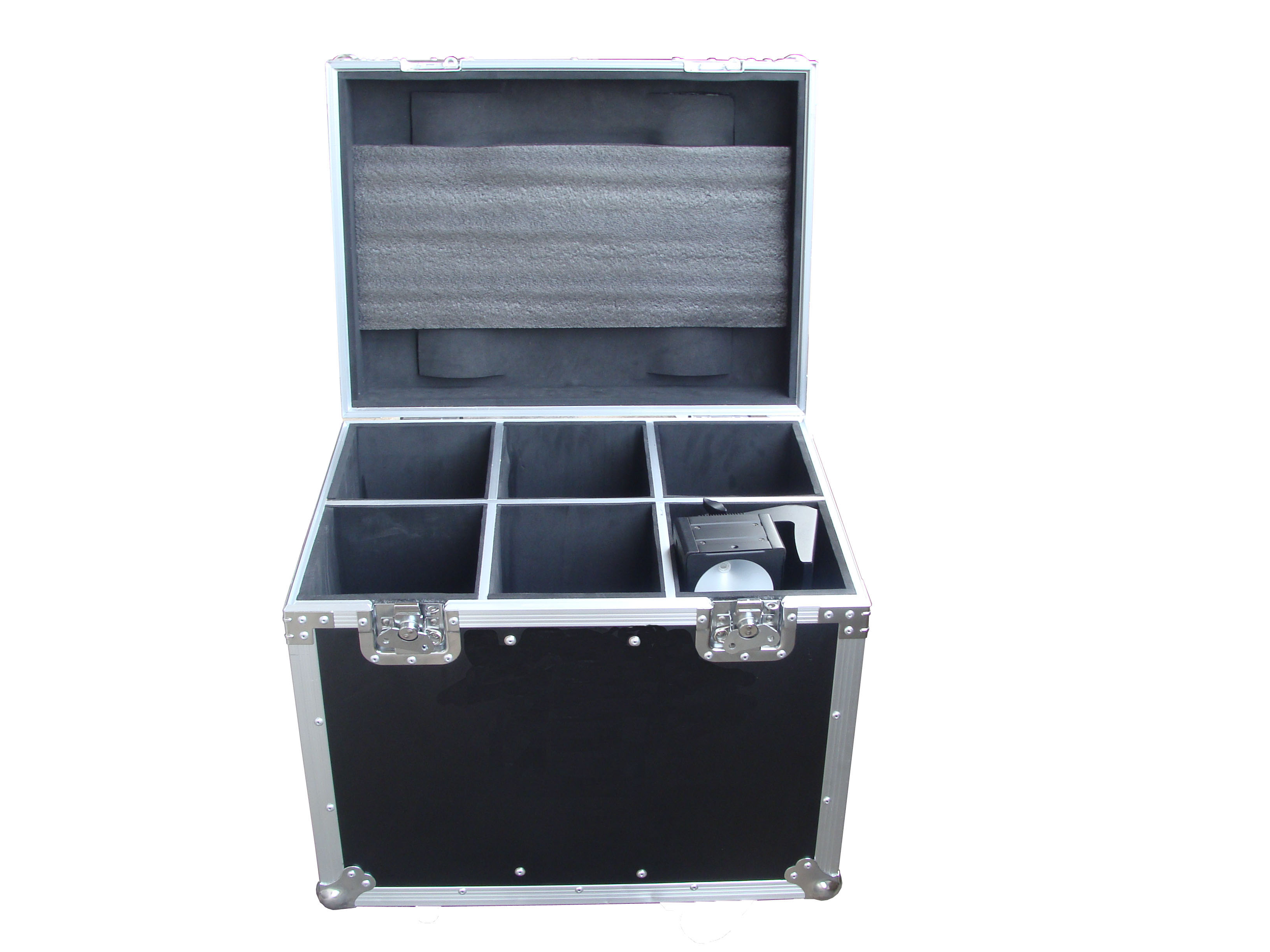

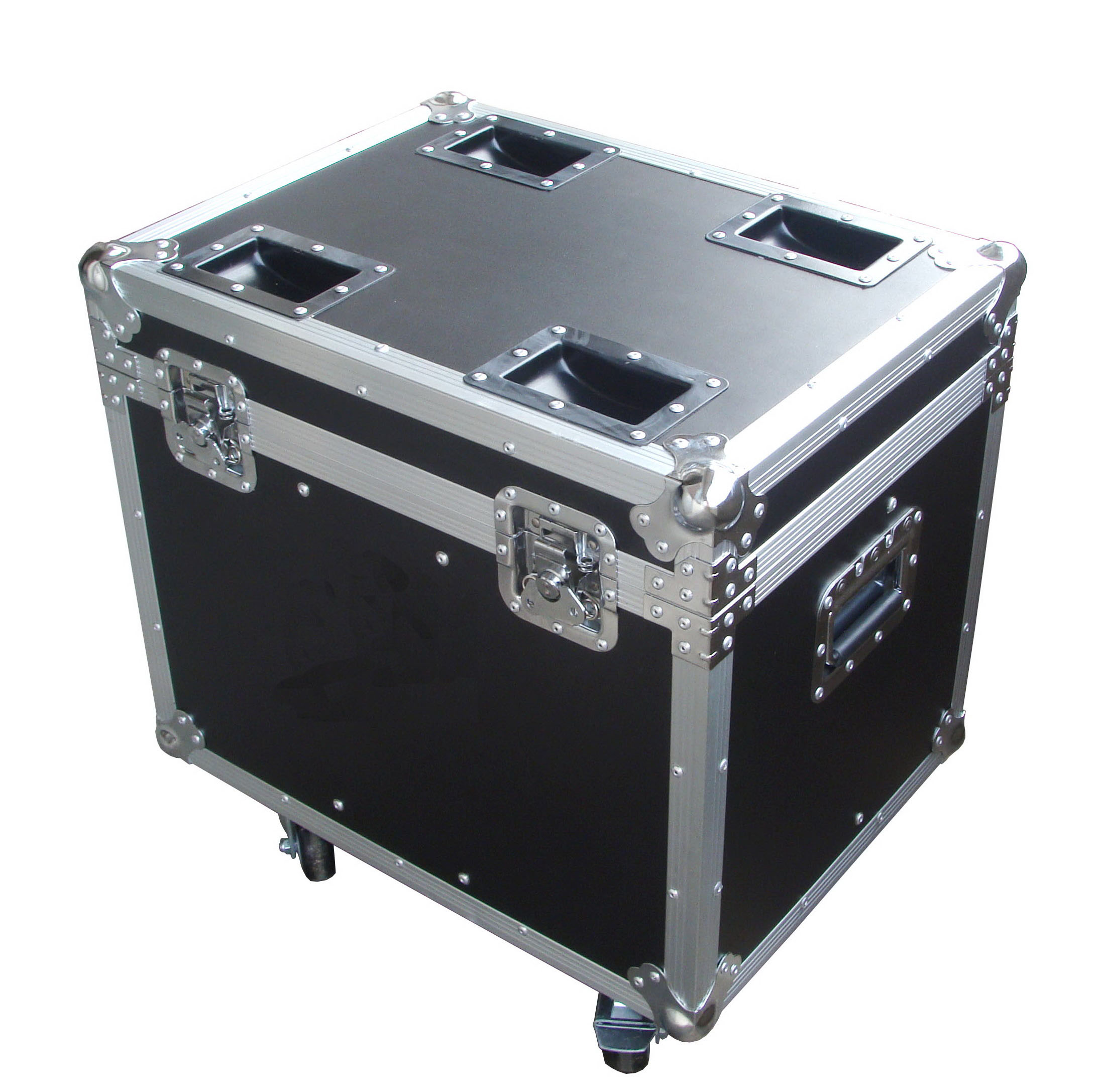

• Accessory: flightcase,

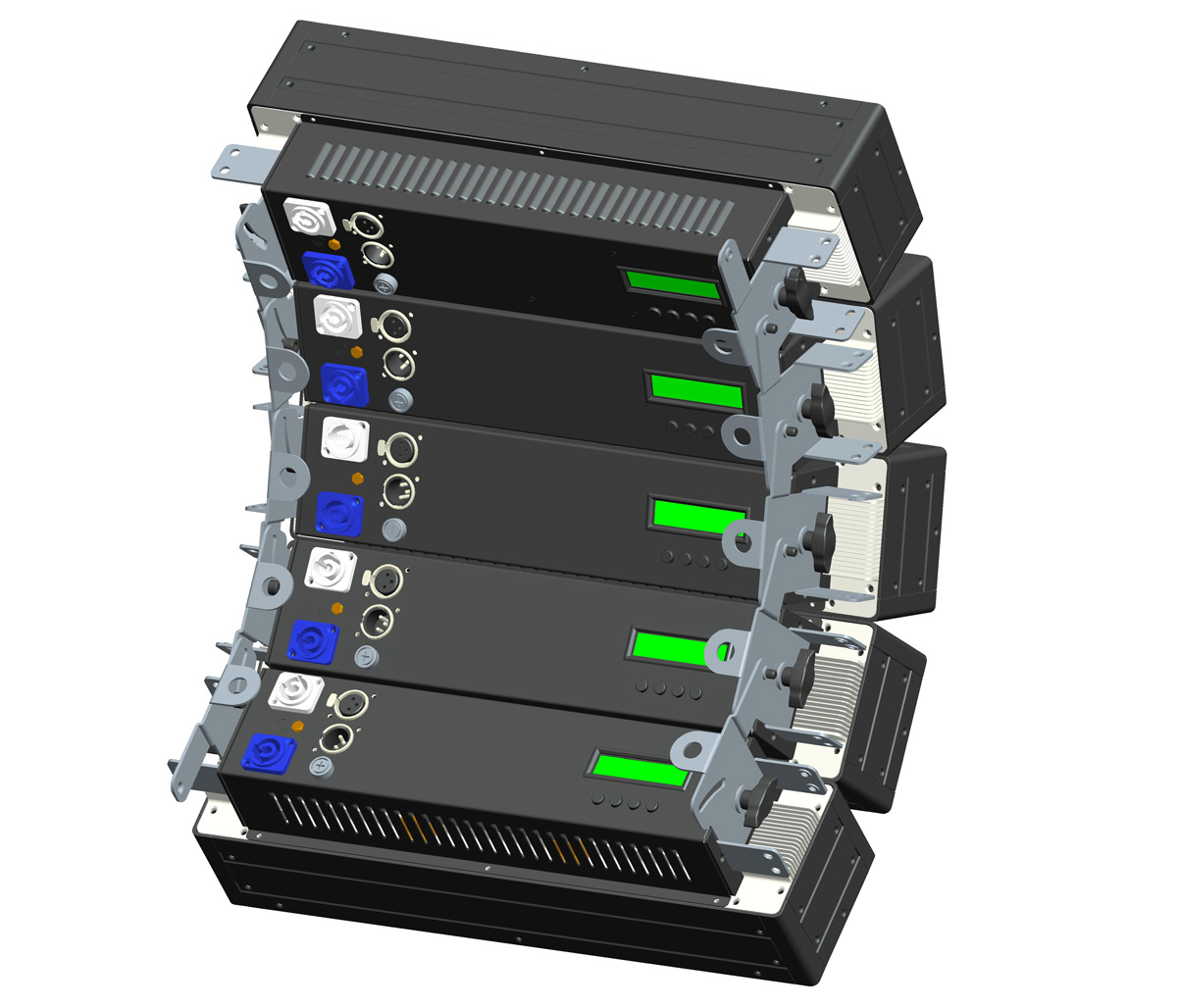

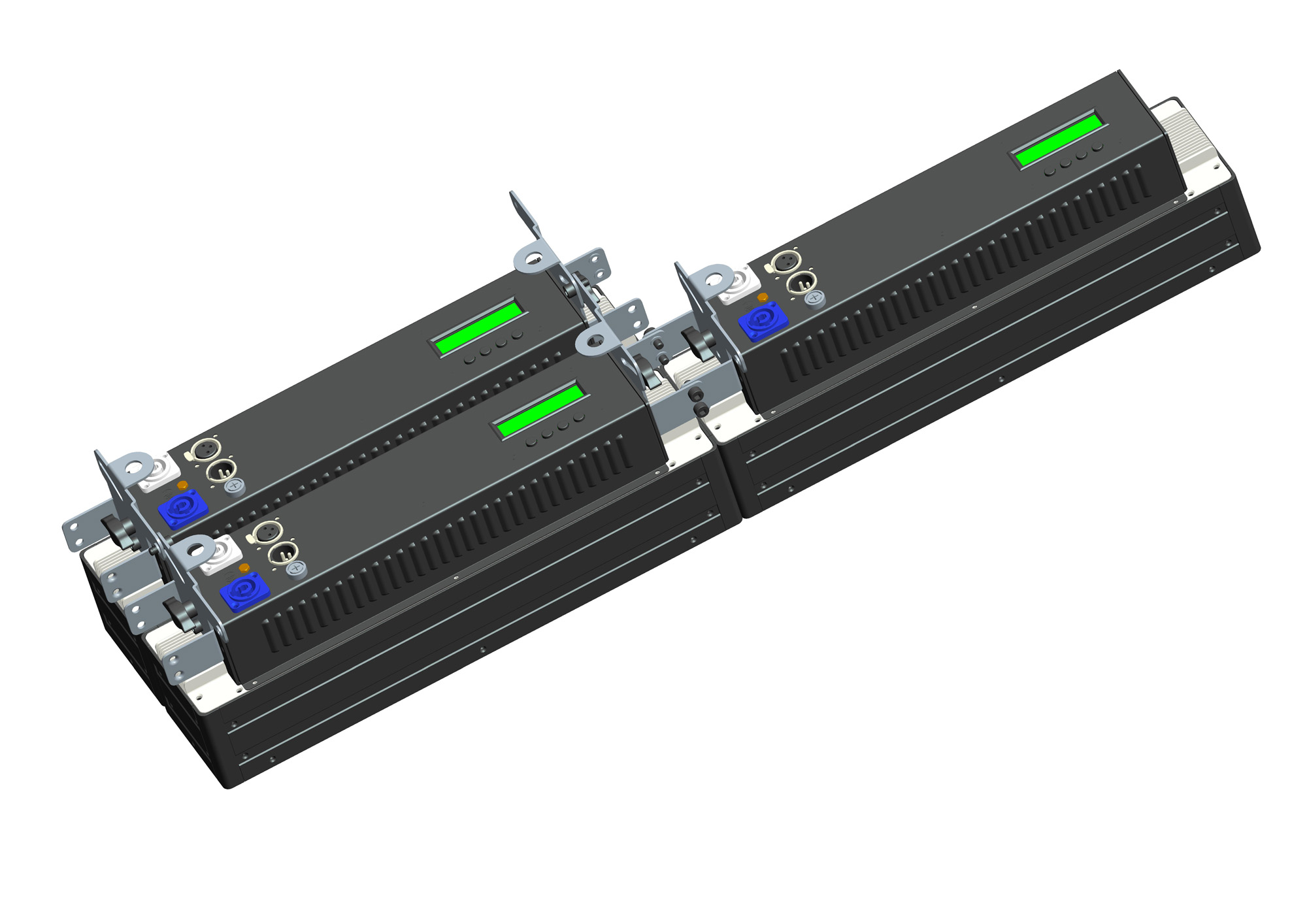

• Rigging: dual yokes

• Certificate:CE,ROHS

***Modifying the fixture according to your requirement is acceptable***
