TECHNICAL SPECIFICATIONS:

• Light source:2 pcs of COB RGB 30W Led

• Power : 50W

• Beam Angle:40°

• Field Angle:60°

• Illuminance(lx):Full on :R-754， G-684， B-734, RGB-2377@ 1m

• Housing: Aluminum - Black or White

• Dimension: 213 x 136 x 165 mm

• Weight: 2.5kg

• Cooling : No Fan,Temprature protection

•  DMX channels: 3/5/6/9/11CH

• Pixel: 2 X 3 RGB pixel mapping


• 16bit digital dimming

• Operation modes: DMX-512 Protocol, Auto Running programs, Sound Active, Master/Slave,RDM(Optional), WDMX(Optional)

• PWM:11700HZ

• Strobe Effect: 1-25HZ

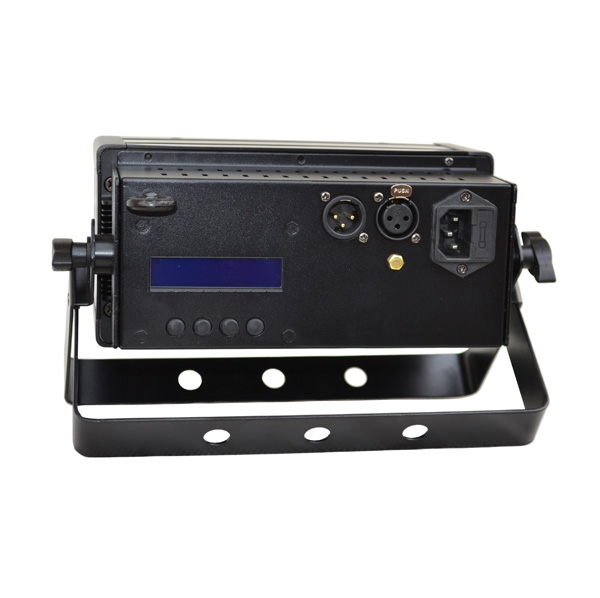

• Power connectors:  IEC

• DMX512 connection: 3-pin XLR or 5-pin XLR

• Accessory: flightcase,

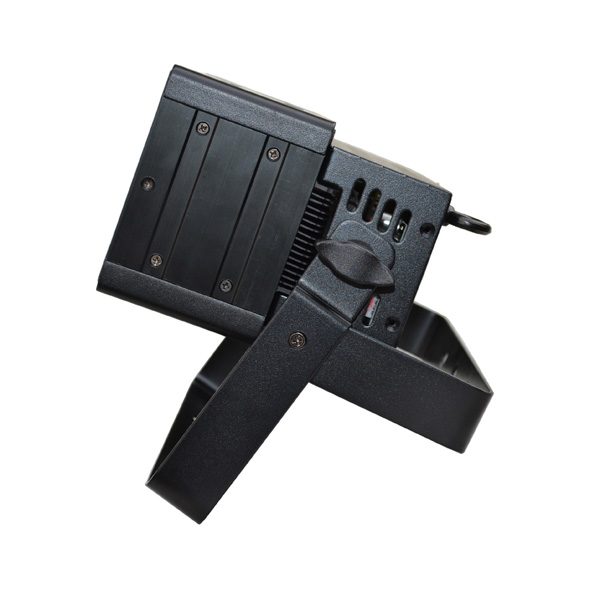

• Rigging: dual yokes

• Certificate:CE,ROHS

***Modifying the fixture according to your requirement is acceptable***
