TECHNICAL SPECIFICATIONS:

• Light source:2 pcs of 200W COB Warm white and cool white LED(2700K+6500K)+64 pcs of 0.1w AMBER(32 Leds x 2 segments)

• Power consumption: 380W

• Lens : Planoconvex lens -117mmØ, glass

• Illuminance(lx):Full on :27300@ 1m,6860 @2m

• Housing: Aluminum - Black or White

• Dimension: 372 x 186 x 146.2 mm

• Weight: 8.1kg

• Cooling : Two Fans (3 speed levels),Temprature protection

• Beam Angle:53°

• Field Angle:85°

•  DMX channels:  1CH / 1U CH / 2CH / 5CH / 7CH / 8CH / 10CH

• 16bit digital dimming

• Operation modes: DMX-512 Protocol, Auto Running programs, Sound Active, Master/Slave,RDM(Optional), WDMX(Optional)

• PWM:1200HZ

• Strobe Effect: 1-25HZ

• Power connectors: Rean IP65 True 1

• DMX512 connection: 3-pin XLR or 5-pin XLR

• Accessory: extention DMX & Power cables(optional) , flightcase, Hanging Bar

• Rigging:

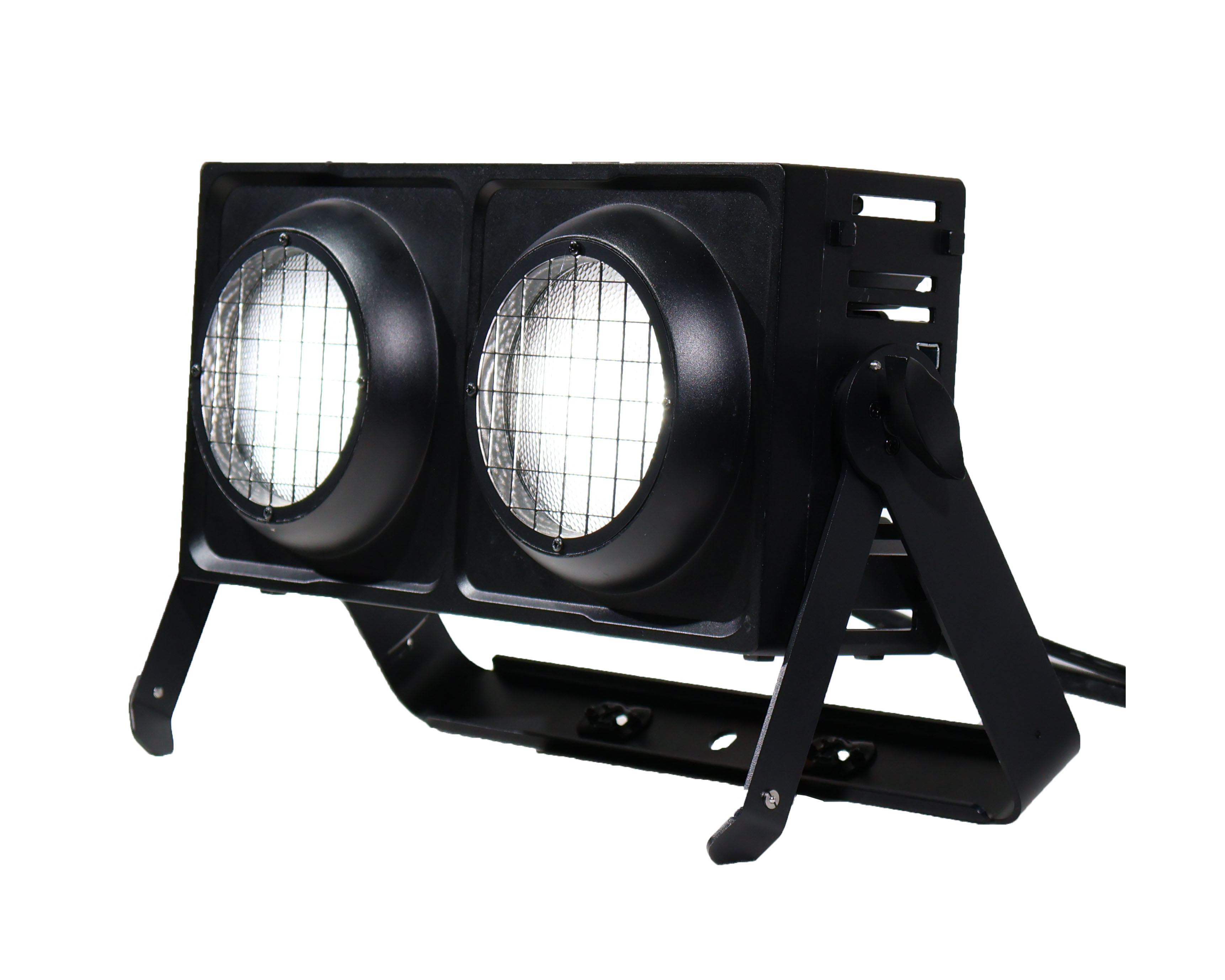

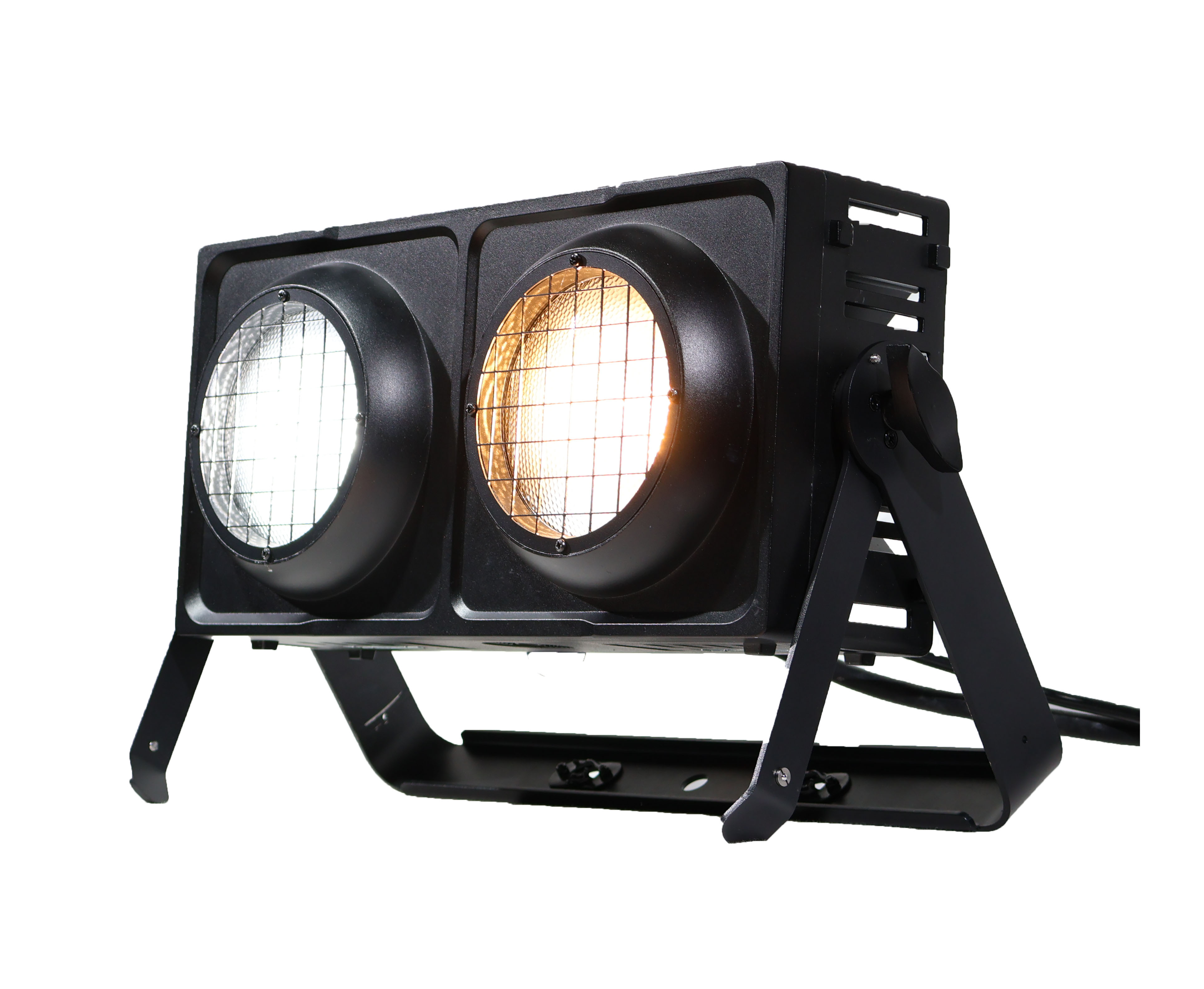

• (1)double yokes(can stand on the floor alone or hang up horizontally)

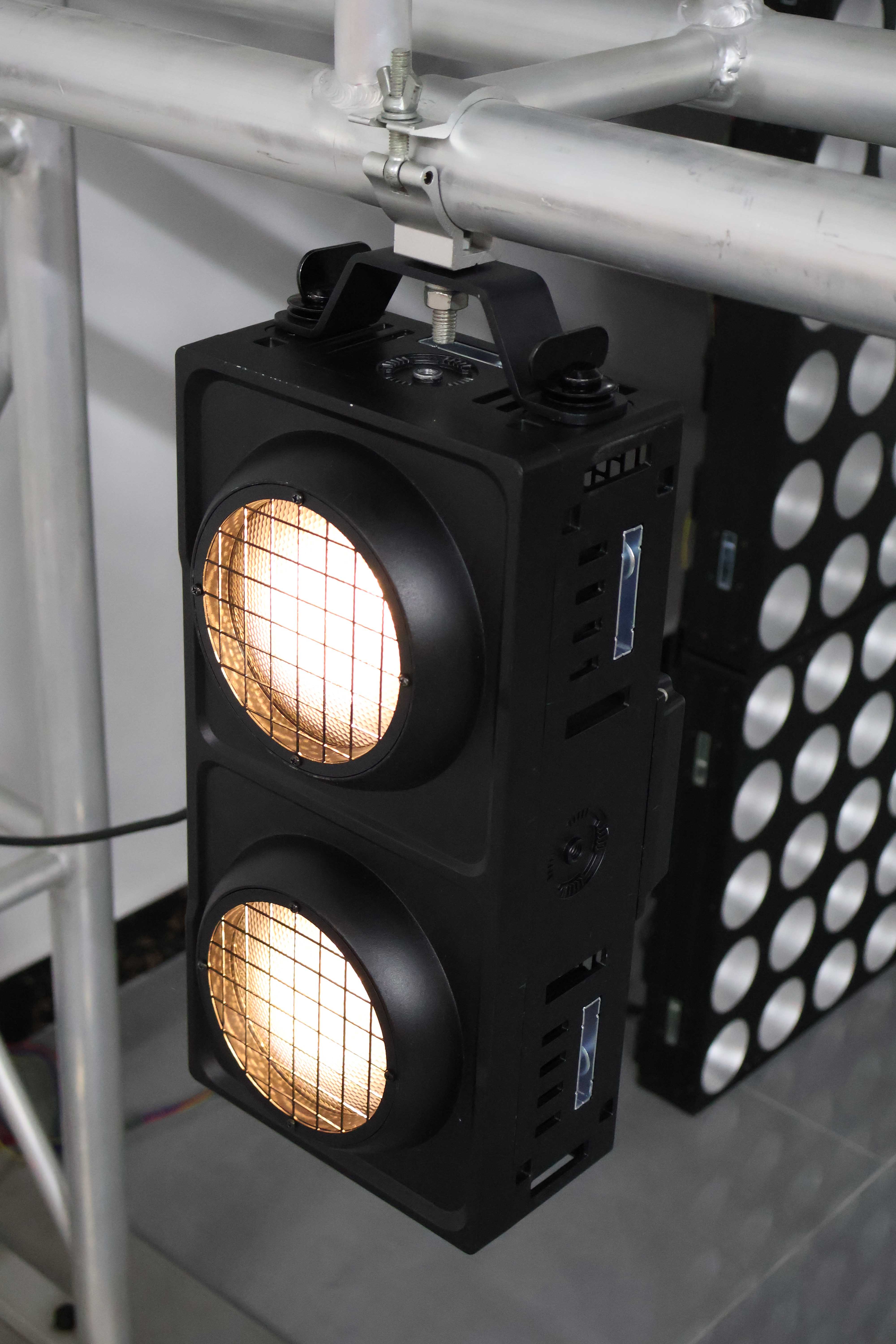

• (2)mounting point on the top and bottom for bracket to be hung vertically

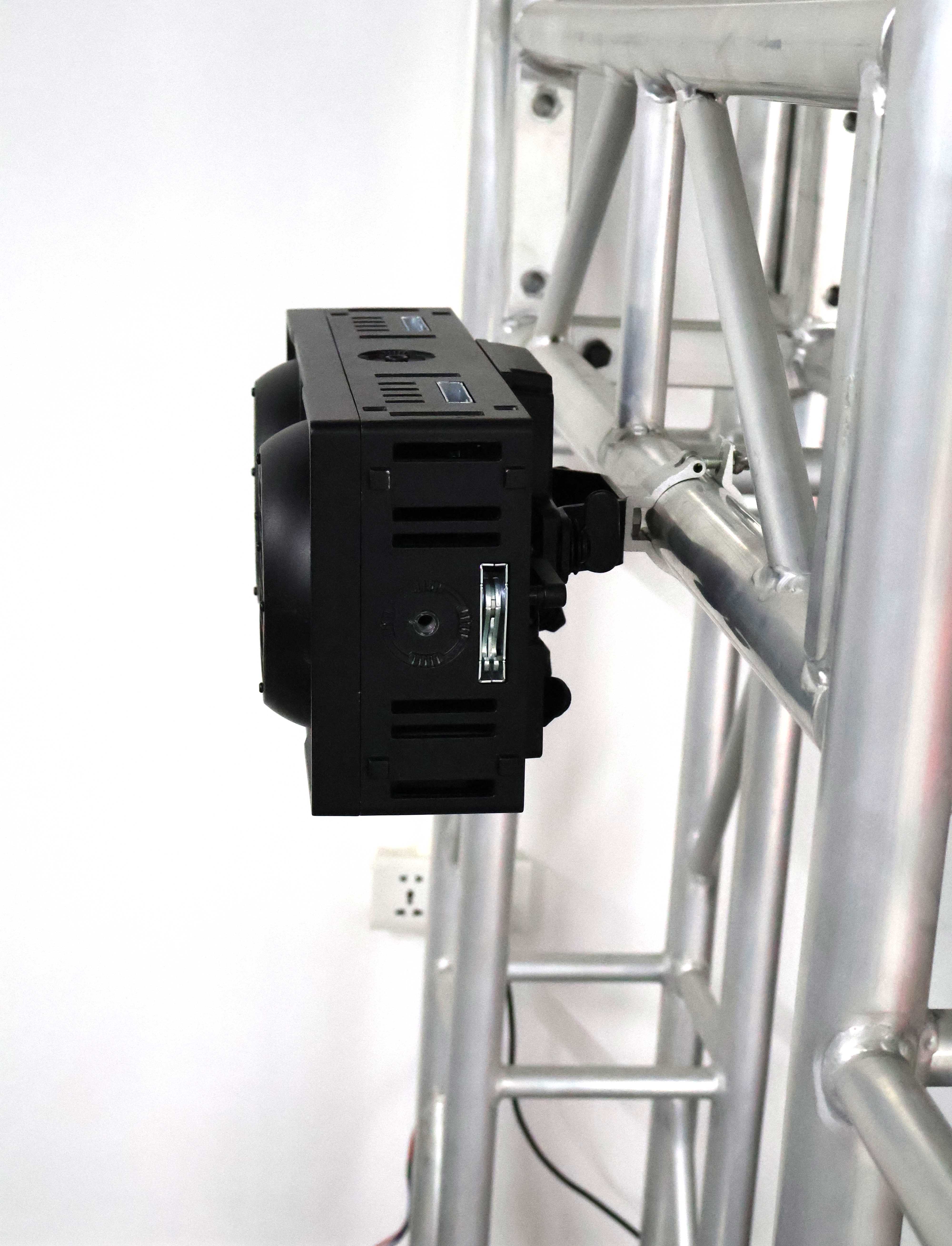

• (3)cam locks for 1/4 turn Omega Bracket on the side and back

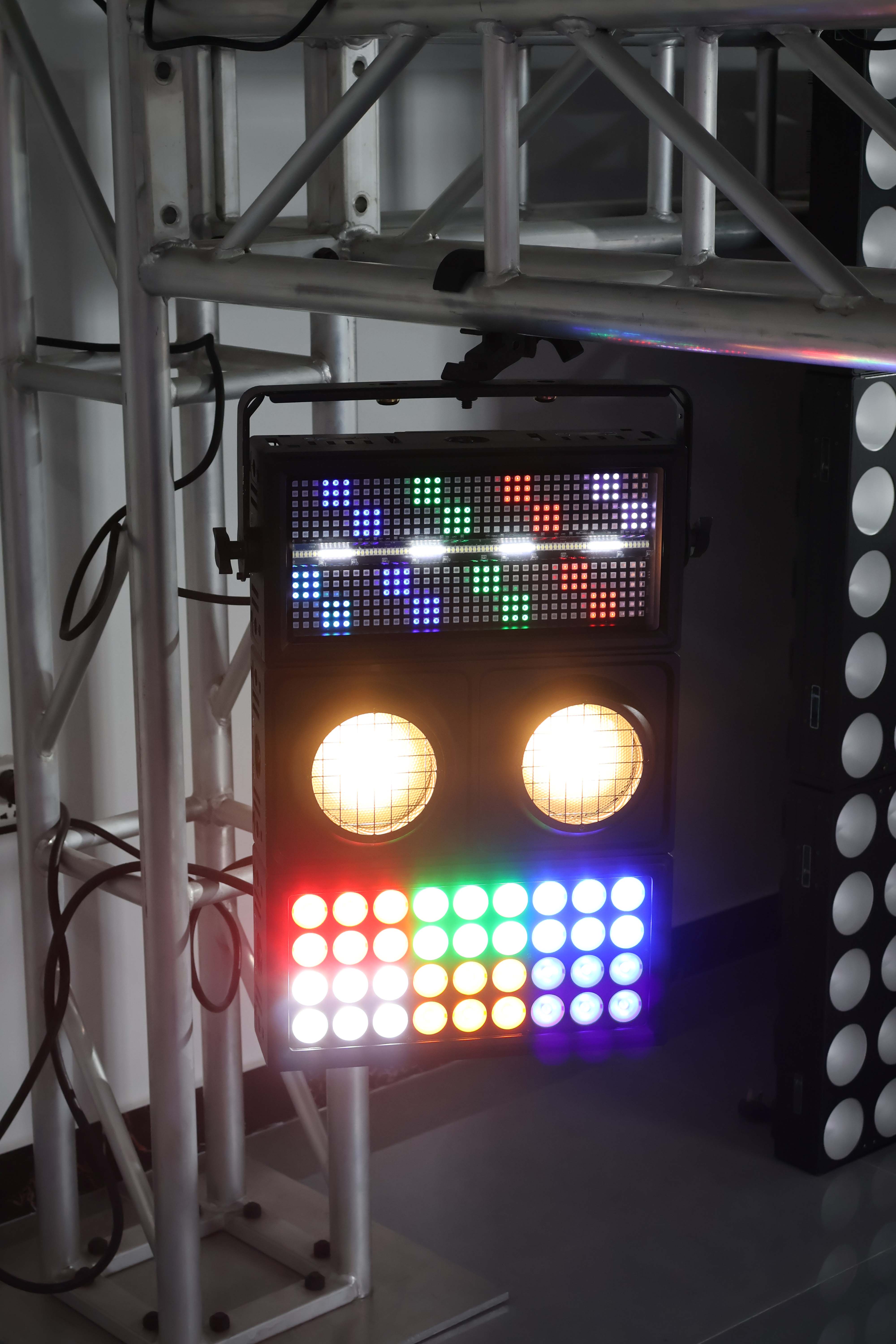

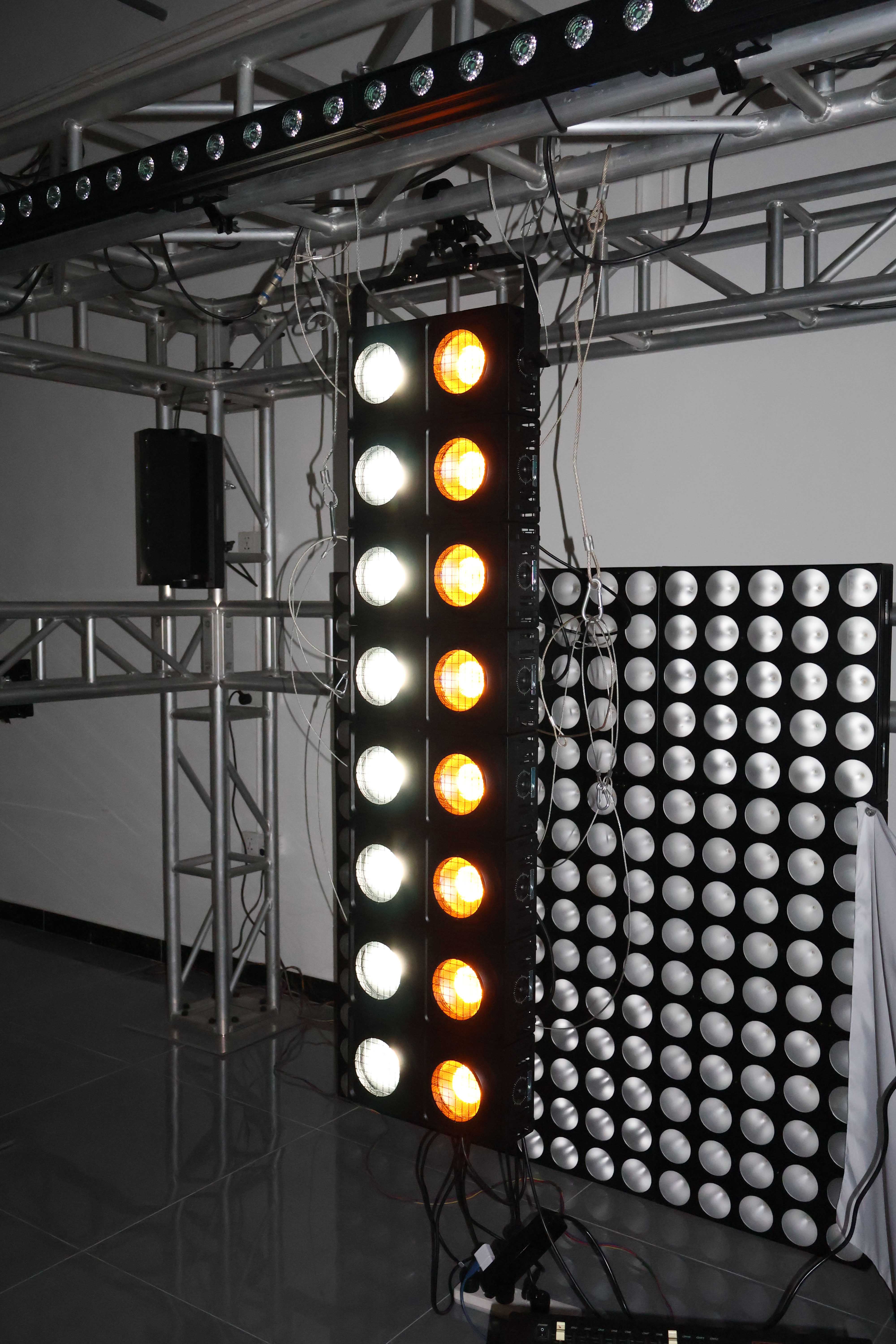

• (4)6 coffinlocks +3 tool free lock handles for multi-fixtures linking and hanging horizontally and vertically;

***Modifying the fixture according to your requirement is acceptable***
